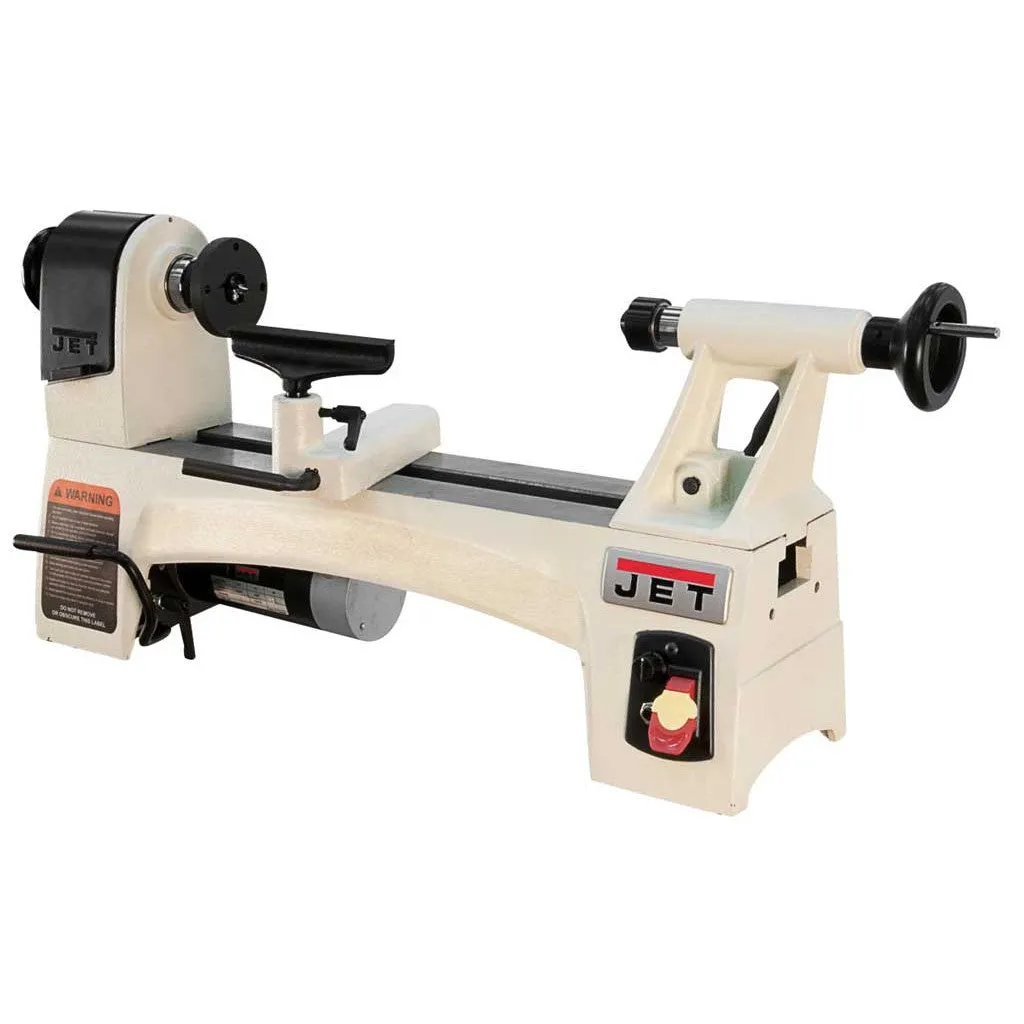

The new JET 1015VS wood lathe is an ideal choice for the novice woodturner looking for an affordable, user-friendly first lathe, as well as the advanced enthusiast or professional who wants to add a full-featured mini-lathe to the shop.
This sturdy, smooth-running 15” mini-lathe has the power, precision, and versatility to turn out any number of projects. When you’re ready to make your ideas a reality, and at a price you can afford… Start Here!
Now available for pick up at our Racine, WI store!
(Other con US locations will add $50.00 large item delivery. Shipping from Racine WI, or from Mfgr)
1015VS WOOD LATHE FEATURES
- 15-1/2” between centers
- Six spindle speeds: 500, 840, 1240, 1800, 2630 and 3975
- Integrated 24 position indexing
- Improved tensioning system with easier access to belts
- Wider bed ways provide increased rigidity
- Live center in the tailstock
- 10′ swing capacity
- Sturdy tool rest base
- No 2 Morse Taper
- Jet’s Red Assurance 5 Year Warranty
- Optional stand and bed extension available
1015VS WOOD LATHE SPECIFICATIONS
- Swing Over Bed (In.) 10
- Swing Over Tool Rest Base (In.) 7-5/16
- Distance Between Centers (In.) 15-1/2
- Spindle Bore (In.) 3/8
- Spindle Taper MT2
- Quill Taper MT2 Quill Travel (In.) 2
- Spindle Thread (In./TPI) 1’/8 TPI
- Spindle Speeds 500/840/1240/1800/2630/3975
- Number of Indexing Positions 24
- Bed Construction Cast Iron
- Motor Power (HP) 1/2
- Motor Phase (PH) 1
- Motor Voltage (V.) 115
- Prewired Voltage (V.) 115
- Motor Amps 4
- Recommended Circuit Size (Amps.) 10
- Assembled Machine Dimensions (In.) 26L x 7W x 14H
- Weight 73 pounds / Shipping Weight 78 Pounds
